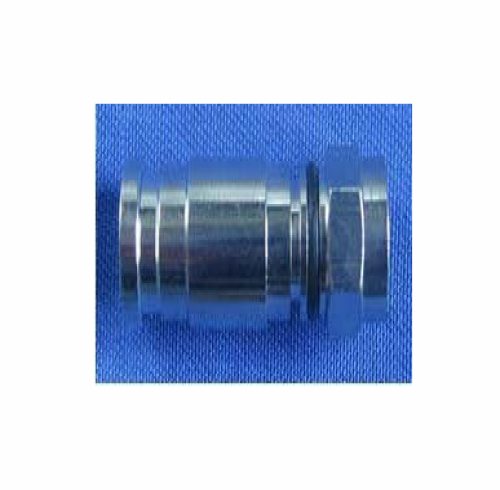

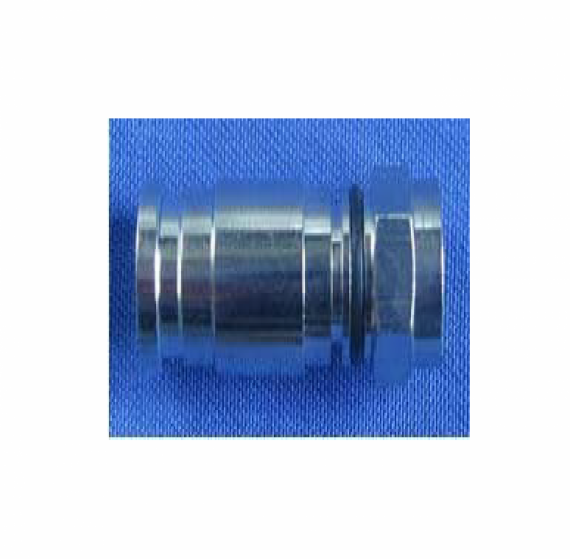

F-male connector for RG6 cable Compression type, outdoor use
F-male connector for RG6 cable Compression type, outdoor use
  • Model
    SFJT4-5CP
  • Brand
    Seehai
  • Price
    Call
  • Description

    New generation of high performance sealed compression “F” connectors, combines ease of installation over a wide range of cable braid coverage with superior performance features.

    Connector design incorporates a free spinning nut making installation faster and more reliable. The one piece design eliminates any loose parts. Connection can be performed rapidly and consistently without the risk of misalignment of multiple parts.

    Compression technology provides 360 degrees of contact to the cable, providing excellent RF shielding integrity and a complete seal to the cable jacket to lock out moisture.

    Body, Compression Ring and Nut, Post are made by Brass Alloy with Nickel Plating

    One connector for both indoor and outdoor applications, one step cable preparation using commonly available compression tools

Quantity :
Describe Product

Bandwidth: 5-1000 MHz

Nominal Impedance: 75 Ohms

Insertion Loss : ≤0.15 dB max.

Return Loss:≥ 23dB minimum

Shielding Effectiveness: ≥ 90 dB

Specifications

Install size:

Unit: mm

F male connector for RG6 cable Compression type outdoor use
F male connector for RG6 cable Compression type outdoor use
