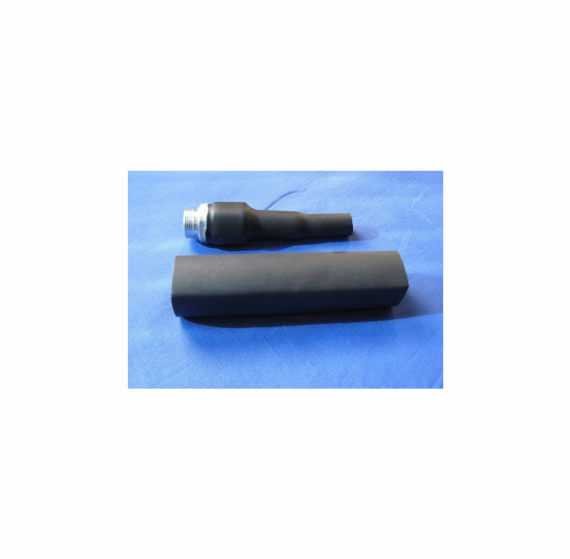

Heat shrink tube (RG11)
Heat shrink tube (RG11)
  • Model
    SHT-RSG-HMG-NF-28.00/6.00
  • Brand
    Seehai
  • Price
    Call
  • Description

    Medium wall heat shrink tube applicated on CATV and pipe project low voltage electrical industry.

    Environment friendly, halogen free.

    Impack withstand Anti- corrosion.

    Working temperature -55℃ to 110℃.

    Typical 120℃ Shrink temperature.

    Waterproof perfomance.

Quantity :
Describe Product

With plenty of glue/adhesive inside, 28.00/6.00 +/- 0.5mm x 2.30±0.1mm thickness of tube wall.

1.00mm min. thickness of glue after heat shrinking.

1.22±0.05m length per tube.

Specifications

Specifications:

Performance

Test method

specification

Physical

Properties

Tensile strength(MPa)

GB/T1040

≥10.4

Elongation(%)

GB/T1040

≥200

Tensile strength after aged(MPa)

UL224;158℃X168h

≥7.3

Elongation at break after(%)

UL224;158℃X168h

≥100

Heat shock

UL224;250℃X4h

NO Melting,

NO Breakdown

Low temperature Flexibility

UL224;-30℃X1h

NO Breakdown

Pell off strength to polyolefin.

ASTM D1000

30pli(110N/25mm)

Pell off strength to aluminium

ASTM D1000

20pli(80N/25mm)

Electrical

Properties

Voltage

300v

UL224

1500V, NO Breakdown

600v

UL224

2500V, NO Breakdown

Disruptive Strength(KV/mm)

GB/T1408

≥15

Volume Resistivity(Ω.cm)

GB/T1410

≥1x1014

Chemical

Properties

Copper Corrosion

UL224;158℃X168h

PASS

Corrosion Resistance

UL224;158℃X168h

PASS

Fungus Resistance

UL224

*
