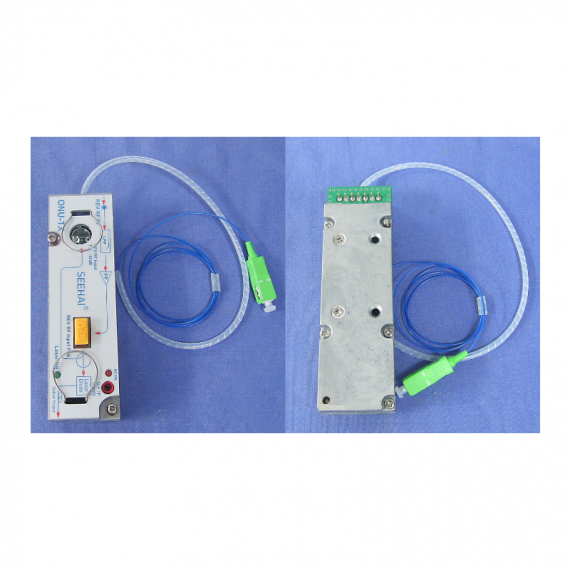

RX module for 4 port ONU
RX module for 4 port ONU
  • Model
    FWD-RX-SG-1G
  • Brand
    Seehai
  • Price
    Call
  • Description

    Module type, fitting into Optical Node with 4 RF active outputs as quoted 45 - 1000MHz Operational Bandwidth.

    InGaAs PIN Photodiode + CATV GaAs or GaN Push Pull Hybrid Amp. Module, brand from G7/EU countries.

    Optical Receiver Hybrid Module + MMIC, brand from G7/EU countries.

Quantity :
Specifications

Specification:

Optical parameters

Wavelength

1290 ~ 1600nm

Input Optical Power

+2 to -6dBm

Return Loss

≥ 45dB

Connector

SC/APC (sleeve material: ceramic)

RF output power

≥ 28dBmV / 1 channel (@ -1dBm optical input)

Install size:      Unit: mm

RX module for 4 port ONU
