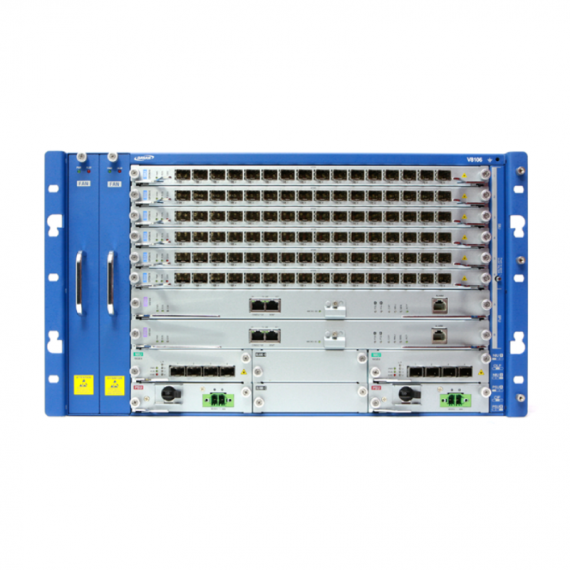

V8106 6RU-high chassis-based GPON OLT System

The V8106 is a 6RU-high chassis-based GPON OLT system, consisting of 6 Service Cards, 2 Swiching Fabric Slots and 2 Uplink Slots of 10 SLOTs, which are full-Featured and High-performance FTTx applications.

A highly integrated system can provide 12,288 homes and businesses with 96 GPON ports. The most compact type of GPON OLT chassis system that provides GPON Protection.

The V8106 provides high-density GPON access, 10GbE uplink, and 640Gbps non-blocked switch fabric.

The V8106 provides full redundancy for Switching Fabric Unit / Power / GPON Unic.

The V8106’s technology adds new features aimed at improving performance and interoperability, and provides support for new application, service, and deployment scenarios.

DIMENSIONS

Size(W x H x D)

• 482.6 x 265.9 x 280.0mm

POWER

Input Power

• Input : -48VDC (redundancy)

INTERFACES

Service Ports

• 96 GPON(SFP, SC/PC type)

Uplink Ports

• 4 10GE/GE(SFP+)

MGMT Port Ports

• 1 100/1000Base-TX (RJ45)

• 1 microSD Interface

Console Port

• 1 Console (RS232)

PROTOCOL SUPPORT

Layer 2

• Standard Ethernet bridging

• Port/Subnet/Protocol-based VLAN

• Spanning Tree: STP, RSTP, MSTP

• 802.3ad Link aggregation based on MAC

Layer 3

• IPv4 routing / IPv6 routing

• RIPv1/v2, OSPFv2, BGPv4

• Virtual Router Redundancy Protocol (VRRP)

Multicast

• IGMPv1/v2/v3, PIM-SM/SSM

• IGMP snooping

• Multicast VLAN Registration (MVR)

GPON

• ITU-T G.984 compliant

• Supports ITU-T G.984.4 ONT Management & Control Interface (OMCI)

• Remote ONT/ONU management

• Automatic ONT ranging

MANAGEMENT

• Serial / Telnet (CLI)

• SNMPv1/v2/v3, RMON

OPERATING REQUIREMENTS

Operating Temperature

• -25~55°C

Humidity

• 0~90% (non-condensing)
